Optimal Access. Unlimited Potential.

Sonosite LX is elevating clinicians’ experience by making point-of-care ultrasound more inclusive and accessible in diverse environments. From the first touch, the user is welcomed to a truly exceptional heads-up workflow experience with its expansive touchscreen display that allows rotation and extension for collaboration with team members. Sonosite LX incorporates our most advanced image clarity. Brimming with educational potential, users of all levels are empowered to explore more than ever before.


  • Advanced image clarity on a large, adaptable clinical display for easy viewing with clinical team members and consultation with patients
  • The T8-3 transesophageal transducer allows clinicians to confidently assess patients during cardiac exams, resuscitation, and monitoring during surgery
  • A small footprint, rotating and extending display, and vertically adjustable control panel to gain optimal bedside access
  • Optimized exam types and heads up workflow on the expansive touchscreen clinical display
  • Compatible with our redesigned family of linear, curved and phased array transducers
  • Cleaning Mode to improve ease of infection control between procedures

Clinical Imaging

P5-1, Cardiac Apical 4 Chamber

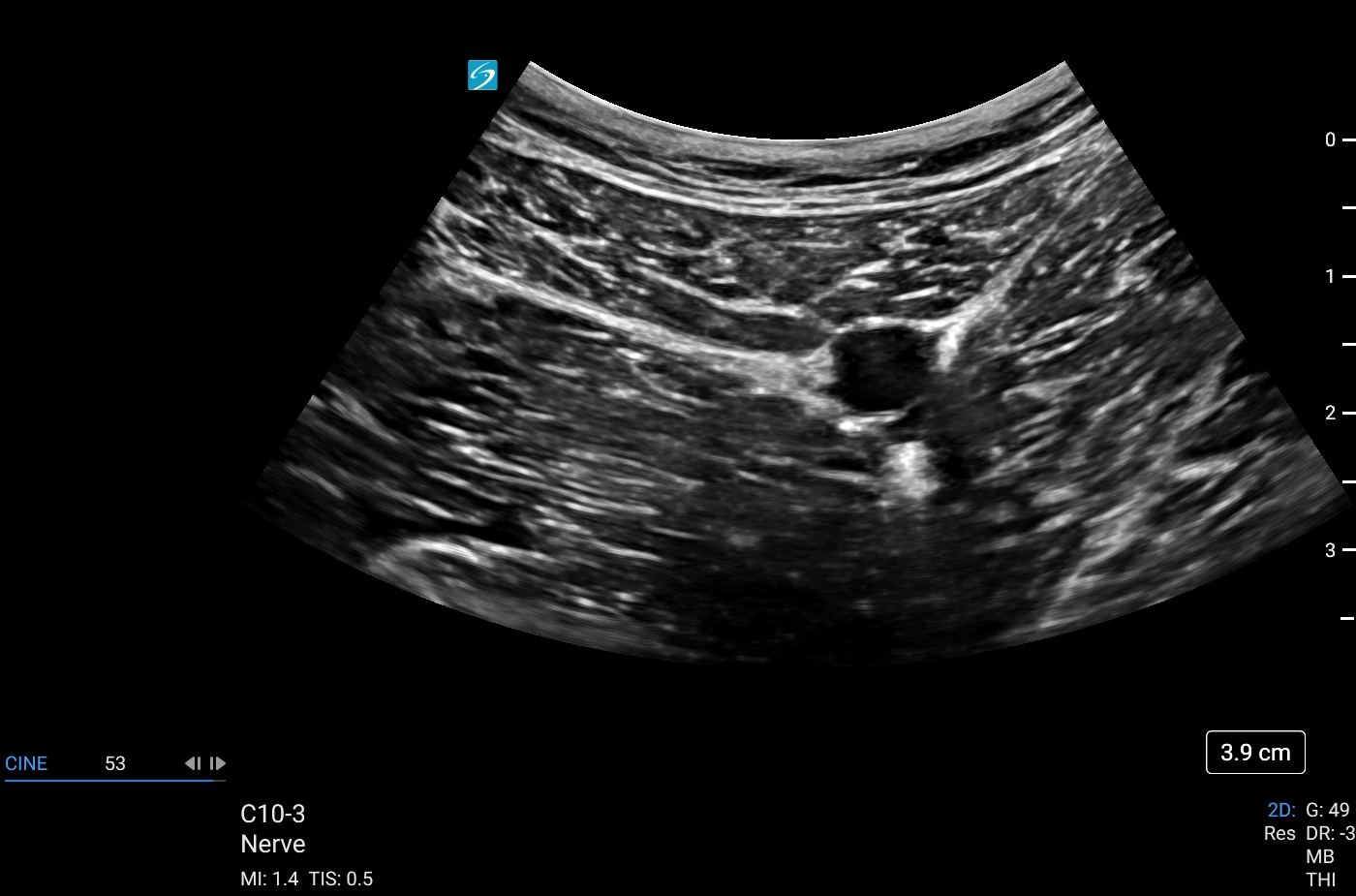

C10-3, Nerve Adductor Canal Block
L15-4, MSK Finger A1 Pulley with Flexor Tendon

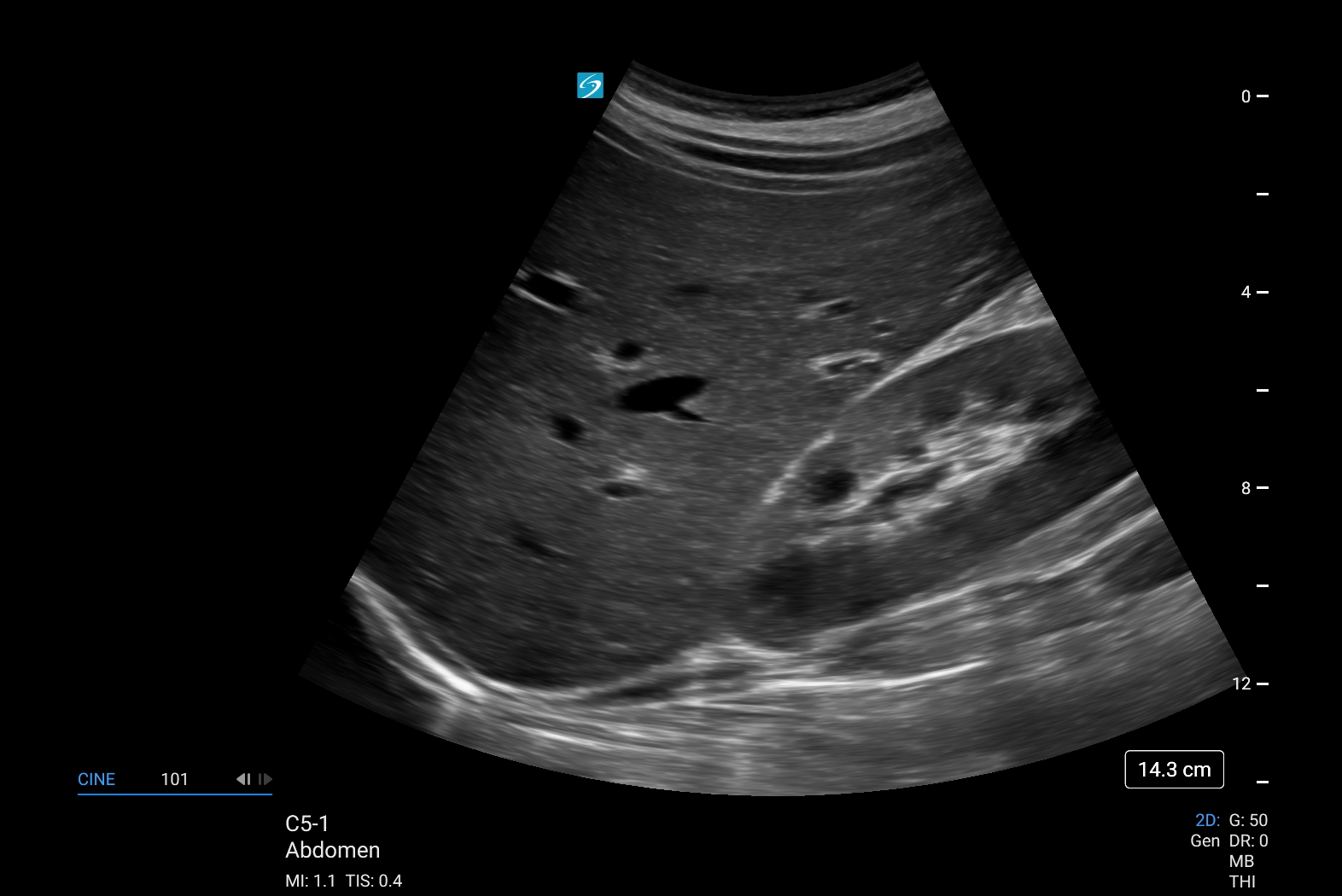

C5-1, Abdominal RUQ

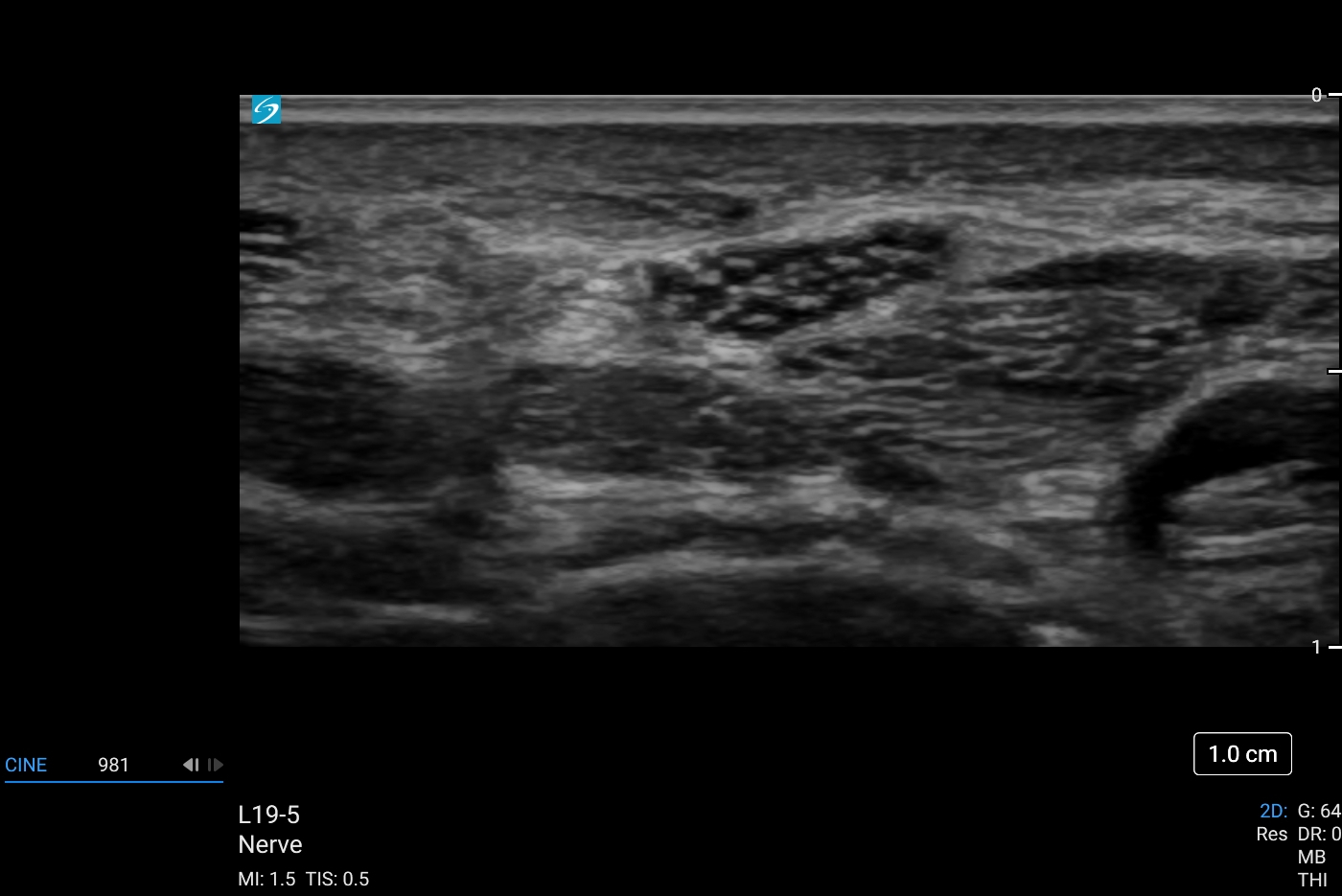

L19-5, Median Nerve

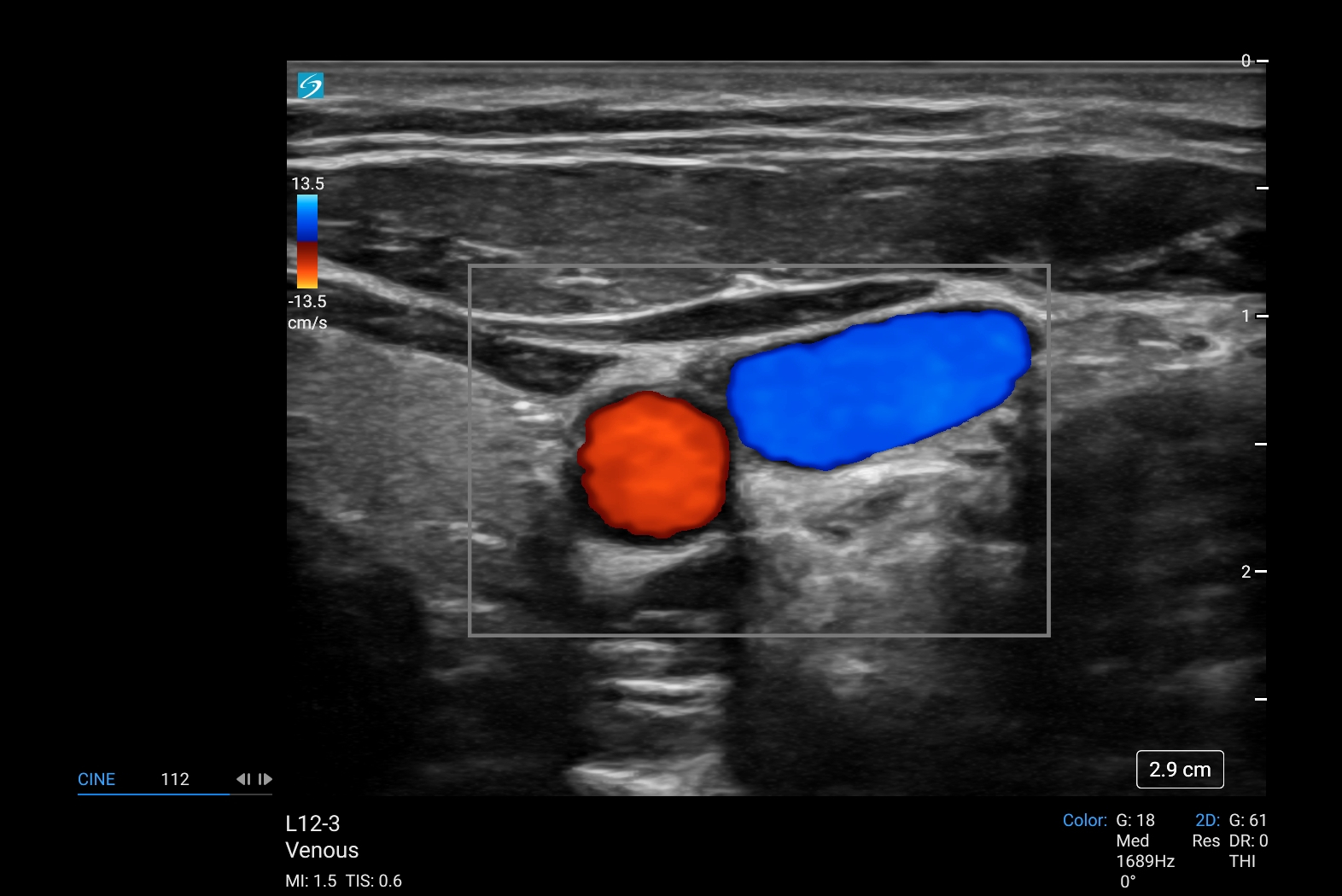

L12-3, IJ CCA Color
Model Applications Bandwidth Scan Depth Needle Guide
C10-3 TransducerC10-3 Abdominal, Gynecology, Lung, Musculoskeletal, Nerve, Spine 10-3 MHz 3-18 cm CIVCO Infiniti Plus™ In-Plane Ultrasound Needle Guide
C5-1 Abdominal, Gynecology, Lung, Musculoskeletal, Nerve, Obstetrics 5-1 MHz Curved 30cm CIVCO Infiniti Plus™ In-Plane Ultrasound Needle Guide
IC10-3 Gynecology, Obstetrics, Prostate 10-3 MHz Curved 15cm CIVCO Disposable Endocavity
L12-3 Arterial, Breast, Lung, Musculoskeletal, Nerve, Ophthalmic, PIV, Venous 12-3 MHz 9cm CIVCO Infiniti Plus™ In-Plane Ultrasound Needle Guide
L15-4 Arterial, Breast, Musculoskeletal, Nerve, Superficial, Venous 15-4 MHz 6cm CIVCO Infiniti Plus™ In-Plane Ultrasound Needle Guide
L19-5 Arterial, Lung, Musculoskeletal, Nerve, Ophthalmic, PIV, Superficial, Venous 19-5 MHz 6cm CIVCO Infiniti Plus™ In-Plane Ultrasound, CIVCO AccuSITE™ Out-of-Plane Ultrasound Needle Guide available
P5-1 Abdominal, Cardiology, Lung, Obstetrics, Orbital, TCD 5-1 MHz 35cm
T8-3 TransducerT8-3 Cardiac, Cardiac Resuscitation 8-3 MHz 4-18 cm Kit Not Available

Streamline your Workflow

Save time with the Sonosite Barcode Scanner that automatically links patient data with the ultrasound exam. Compact and ergonomic, the Barcode Scanner... (more)

Leakage Tester

The purpose of the leakage tester is to evaluate the integrity of the transducer electrical insulation prior to each use of the T8-3 transesophageal transducer. (more)

Print ultrasound studies with a medical grade black and white printer

Add the optional medical grade black and white printer to a Sonosite stand to print ultrasound studies for... (more)

With Sonosite X-Porte and Barcode Expressions, patient information and physician ID can be captured using the barcode scanner at any time during an ultrasound exam without interrupting the exam being performed.... (more)

Sonosite ECG Module

The 3-lead Sonosite ECG Module connects directly to the Sonosite PX and Sonosite LX ultrasound system through a dedicated ECG port. It allows the system to display an ECG trace on the clinical monitor. Includes ECG lead wire set. (more)

Fujifilm Sonosite is focused on providing point-of-care ultrasound solutions that are protected against potential security breaches. We continuously monitor for vulnerabilities that pose potential cybersecurity risks to system safety and data confidentiality. Sonosite LX includes a robust set of security features.

  • FIPS199, FIPS200, and NIST 800-53 compliant
  • Secure boot-up
  • Setup wizard allows administrators to configure security requirements
  • User and role-based authentication
  • LDAP support
  • Complex password rules support
  • Federal System Use notification support
  • Emergency mode support
  • Secure DICOM
  • Data encryption for stored and in-transit data
  • System-wide white-listing
  • Hardened OS and services
  • System firewall

Sonosite offers an industry-leading, 5-year standard warranty on most ultrasound systems and Sonosite manufactured transducers to ensure your equipment is protected. Learn More.

Included with each Sonosite product purchase is exclusive access to Sonosite Institute, our web-based educational portal. Take advantage of point-of-care ultrasound tools and resources that can help you become a more efficient POCUS provider.

Download PDF icon Sonosite LX (2.91 MB) Brochure

Sonosite Synchronicity

Discover seamless point-of-care ultrasound credentialing, QA, and billing with our workflow manager.
