Sonosite PX System Vertical Mid Front Interscalene

Sonosite PX

Ultrasound Equipment


Advanced Image Clarity

Sonosite PX incorporates our most advanced image clarity for confidence when treating and diagnosing patients. The interface combines touch and physical controls for improved efficiency, while the adaptable horizontal-to-vertical work surface allows for optimal bedside ergonomics. Sonosite’s most advanced image clarity to more accurately visualize sonographic landmarks. Can be operated with gloves and sterile drape


  • The L19–5 transducer is the highest frequency transducer Sonosite has ever produced, providing well-defined near field resolution and a minimum scan depth of 1 cm
  • The T8-3 transesophageal transducer provides access to the heart regardless of patient status with a dedicated exam type that assists during cardiac resuscitation
  • Improved color sensitivity helps physicians assess blood flow or see signs of inflammation
  • Adaptable work surface transitions from a vertical to horizontal position for optimal bedside care
  • Touch panel with unique buttons improves workflow efficiencies with quick access to intuitive controls
  • Stand design with cable catcher system keeps transducer cords off the floor, even at the lowest height
  • Small footprint makes system more maneuverable in crowded corridors and fits better under beds

Clinical Imaging

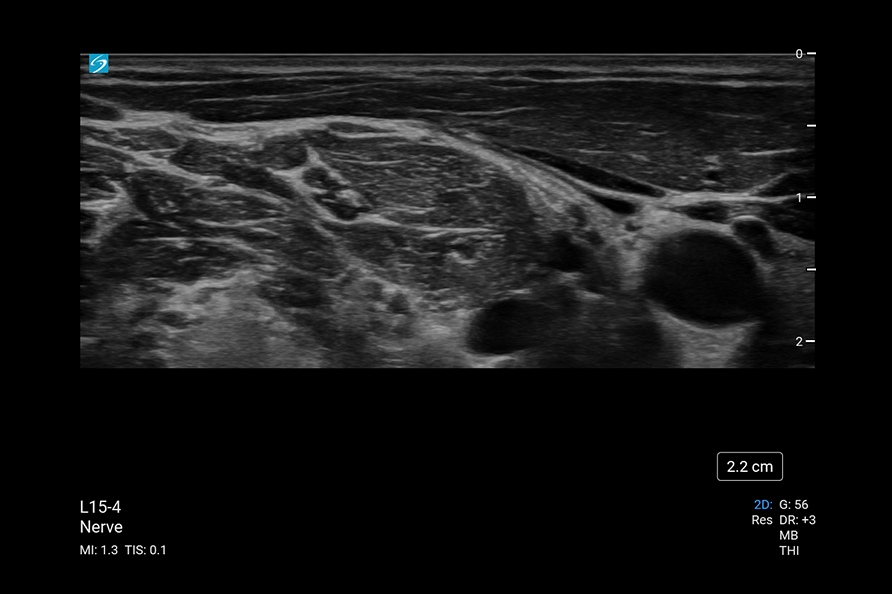

L15-4, Nerve Interscalene

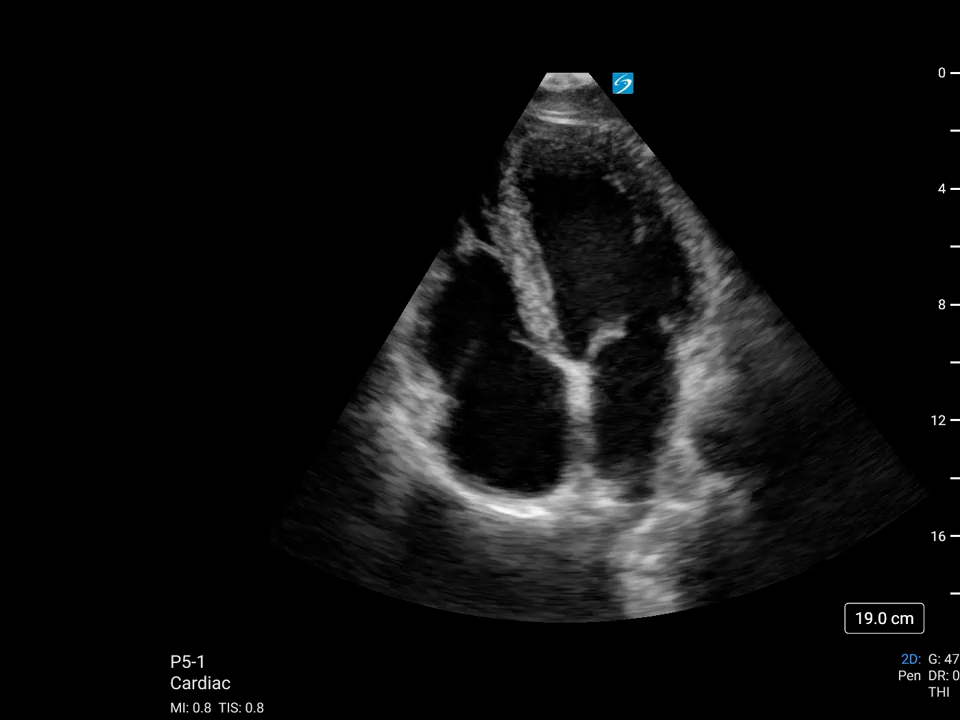

P5-1, Cardiac Apical 4 Chamber (Video)

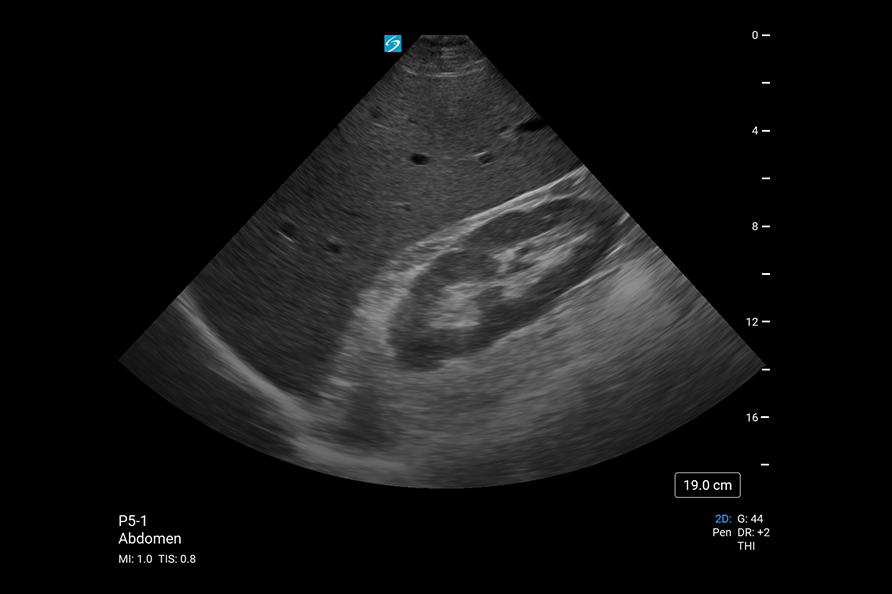

P5-1, Abdominal RUQ

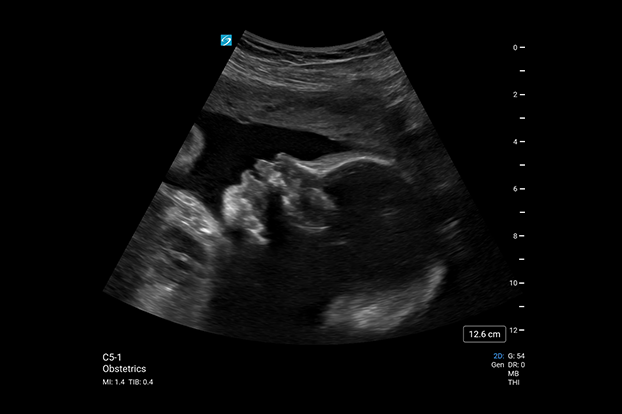

C5-1, Obstetrics Profile

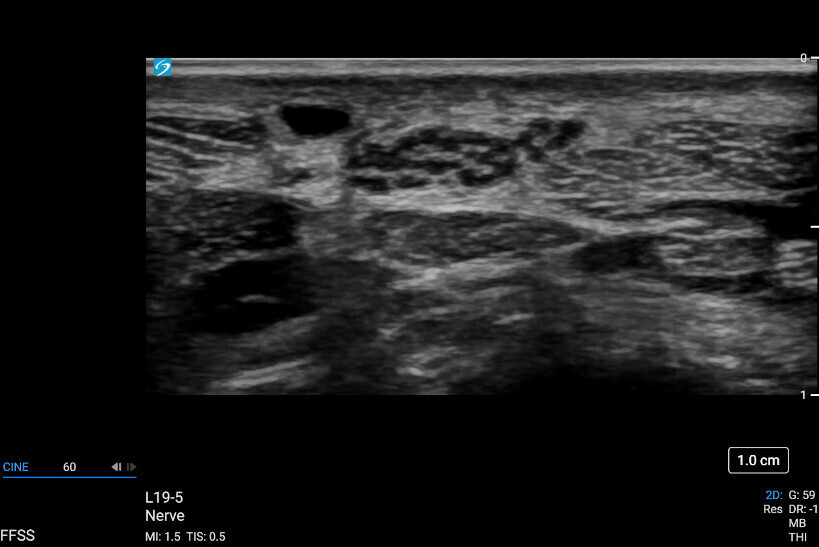

L19-5 MSK Bifurcated Median Nerve

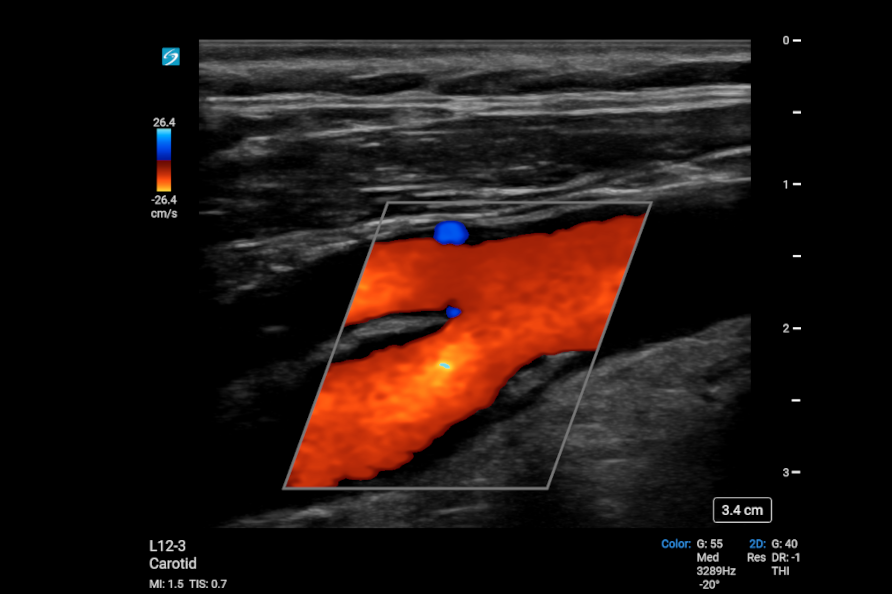

L12-3, Carotid Artery
Model Applications Bandwidth Scan Depth Needle Guide
C10-3 TransducerC10-3 Abdominal, Gynecology, Lung, Musculoskeletal, Nerve, Spine 10-3 MHz 3-18 cm CIVCO Infiniti Plus™ In-Plane Ultrasound Needle Guide
C5-1 Abdominal, Gynecology, Lung, Musculoskeletal, Nerve, Obstetrics 5-1 MHz Curved 30cm CIVCO Infiniti Plus™ In-Plane Ultrasound Needle Guide
IC10-3 Gynecology, Obstetrics, Prostate 10-3 MHz Curved 15cm CIVCO Disposable Endocavity
L12-3 Arterial, Breast, Lung, Musculoskeletal, Nerve, Ophthalmic, PIV, Venous 12-3 MHz 9cm CIVCO Infiniti Plus™ In-Plane Ultrasound Needle Guide
L15-4 Arterial, Breast, Musculoskeletal, Nerve, Superficial, Venous 15-4 MHz 6cm CIVCO Infiniti Plus™ In-Plane Ultrasound Needle Guide
L19-5 Arterial, Lung, Musculoskeletal, Nerve, Ophthalmic, PIV, Superficial, Venous 19-5 MHz 6cm CIVCO Infiniti Plus™ In-Plane Ultrasound, CIVCO AccuSITE™ Out-of-Plane Ultrasound Needle Guide available
P5-1 Abdominal, Cardiology, Lung, Obstetrics, Orbital, TCD 5-1 MHz 35cm
T8-3 TransducerT8-3 Cardiac, Cardiac Resuscitation 8-3 MHz 4-18 cm Kit Not Available

Streamline your Workflow

Save time with the Sonosite Barcode Scanner that automatically links patient data with the ultrasound exam. Compact and ergonomic, the Barcode Scanner... (more)

Leakage Tester

The purpose of the leakage tester is to evaluate the integrity of the transducer electrical insulation prior to each use of the T8-3 transesophageal transducer. (more)

Print ultrasound studies with a medical grade black and white printer

Add the optional medical grade black and white printer to a Sonosite stand to print ultrasound studies for... (more)

With Sonosite X-Porte and Barcode Expressions, patient information and physician ID can be captured using the barcode scanner at any time during an ultrasound exam without interrupting the exam being performed.... (more)

Sonosite ECG Module

The 3-lead Sonosite ECG Module connects directly to the Sonosite PX and Sonosite LX ultrasound system through a dedicated ECG port. It allows the system to display an ECG trace on the clinical monitor. Includes ECG lead wire set. (more)

Details designed to make clinicians' jobs easier

The Sonosite PX Stand is designed to exacting detail. We integrated the transducer holders right into the stand, along with a new... (more)

Fujifilm Sonosite is focused on providing point-of-care ultrasound solutions that are protected against potential security breaches. We continuously monitor for vulnerabilities that pose potential cybersecurity risks to system safety and data confidentiality. Sonosite PX includes a robust set of security features.

  • FIPS199, FIPS200, and NIST 800-53 compliant
  • Secure boot-up
  • Setup wizard allows administrators to configure security requirements
  • User and role-based authentication
  • LDAP support
  • Complex password rules support
  • Federal System Use notification support
  • Emergency mode support
  • Secure DICOM
  • Data encryption for stored and in-transit data
  • System-wide white-listing
  • Hardened OS and services
  • System firewall

Sonosite offers an industry-leading, 5-year standard warranty on most ultrasound systems and Sonosite manufactured transducers to ensure your equipment is protected. Learn More.

Included with each Sonosite product purchase is exclusive access to Sonosite Institute, our web-based educational portal. Take advantage of point-of-care ultrasound tools and resources that can help you become a more efficient POCUS provider.

Sonosite Synchronicity

Discover seamless point-of-care ultrasound credentialing, QA, and billing with our workflow manager.
